V-LASER

PRINCIPLE

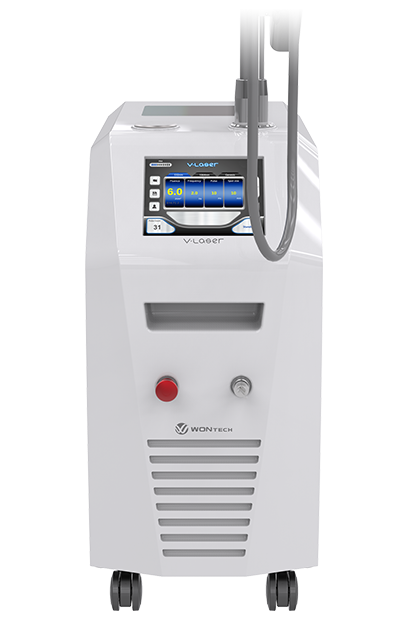

V-Laser is the Long Pulse Nd:YAG laser system offers 1064nm & 532nm wavelengths. It is effective in treating various medical indications such as melasma, freckles, hyper pigmentation, or other complex skin problems.(skin pore, wrinkles, elasticity)

FEATURES

Versatility

Long pulses of 532nm and 1064nm with various pulse duration are effctive in treatments ofvarious lesions such as vascular lesions and benign pigmented lesions in epidermis or dermis of all skintypes

Convenience

Three different modes(532nm, 1064nm or Genesis) are available for various treatmentswithout changing a handpice

Flexibility

Energy, pulse duration and spot size can be exibly adjusted to consider each lesion’s features and better results

Duration

V-laser consists of high quality components and excellent features for long durability.
In addtion there is no extra consumable part for cooling system

INDICATION

Vascular lesions

Pigented Lesions

Skin Rejuvenation

Hair Removal

SPECIFICATIONS

Irradiation Type

Long Pulsed Nd:YAG

Wavelength

532nm, 1064nm

Pulse Duration

532nm : 1 to 40ms
1064nm : 5 to 60ms
Genesis Mode : 0.3ms

Max Energy

532nm : 10J
1064nm : 50J
Genesis Mode : 4J

Repetition Rate

532nm : 0.5 to 3Hz
1064nm : 0.5 to 5Hz
Genesis Mode : 0.5 to 10Hz

Spot Size

2, 3, 4, 5, 6, 8, 10 ,12mm

Cooling

Sapphire Glass Contact Cooling

Dimensions

420(W)X793.2(D)X912.5(H)mm

Weight

80kg

Electrical Requirements

220/230V, 50/60Hz, 4kVA
